HTML Responsive Web Design

Responsive web design is about creating web pages that look good on all devices!

A responsive web design will automatically adjust for different screen sizes and viewports[citation:1].

A responsive web design will automatically adjust for different screen sizes and viewports

Responsive Web Design

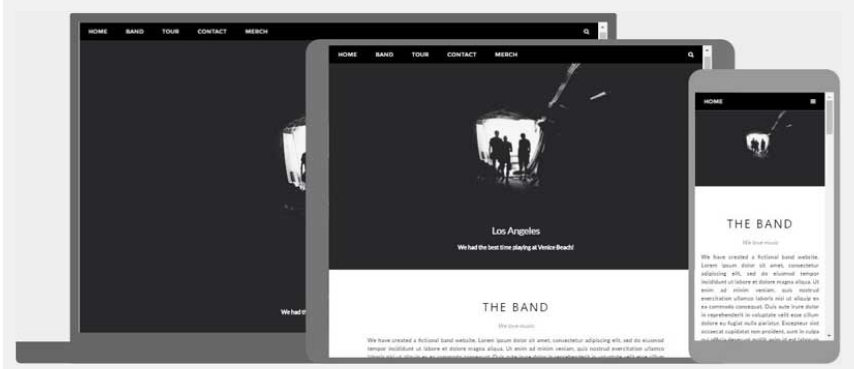

What is Responsive Web Design?

Responsive Web Design is about using HTML and CSS to automatically resize, hide, shrink, or enlarge, a website, to make it look good on all devices (desktops, tablets, and phones):

Setting The Viewport

To create a responsive website, add the following <meta> tag to all your web pages:

<meta name="viewport" content="width=device-width, initial-scale=1.0">

This will set the viewport of your page, which will give the browser instructions on how to control the page's dimensions and scaling[citation:2].

Here is an example of a web page without the viewport meta tag, and the same web page with the viewport meta tag:

Here is an example of a web page without the viewport meta tag, and the same web page with the viewport meta tag

Responsive Images

Responsive images are images that scale nicely to fit any browser size.

Using the width Property

If the CSS width property is set to 100%, the image will be responsive and scale up and down:

If the CSS width property is set to 100%, the image will be responsive and scale up and down

<img src="img_girl.jpg" style="width:100%;">

Notice that in the example above, the image can be scaled up to be larger than its original size. A better solution, in many cases, will be to use the max-width property instead.

Using the max-width Property

If the max-width property is set to 100%, the image will scale down if it has to, but never scale up to be larger than its original size:

If the max-width property is set to 100%, the image will scale down if it has to, but never scale up to be larger than its original size

<img src="img_girl.jpg" style="max-width:100%;height:auto;">

Show Different Images Depending on Browser Width

The HTML <picture> element allows you to define different images for different browser window sizes.

Resize the browser window to see how the image below changes depending on the width:

Resize the browser window to see how the image below changes depending on the width

<picture>
  <source srcset="img_smallflower.jpg" media="(max-width: 600px)">
  <source srcset="img_flowers.jpg" media="(max-width: 1500px)">
  <source srcset="flowers.jpg">
  <img src="img_smallflower.jpg" alt="Flowers">
</picture>

Responsive Text Size

The text size can be set with a "vw" unit, which means the "viewport width"[citation:1][citation:4].

That way the text size will follow the size of the browser window:

<h1 style="font-size:10vw">Hello World</h1>

Viewport is the browser window size. 1vw = 1% of viewport width. If the viewport is 50cm wide, 1vw is 0.5cm[citation:1].

Media Queries

In addition to resize text and images, it is also common to use media queries in responsive web pages.

With media queries you can define completely different styles for different browser sizes.

Example: resize the browser window to see that the three div elements below will display horizontally on large screens and stack vertically on small screens:

<style>
.left, .right {
  float: left;
  width: 20%; /* The width is 20%, by default */
}

.main {
  float: left;
  width: 60%; /* The width is 60%, by default */
}

/* Use a media query to add a breakpoint at 800px: */
@media screen and (max-width: 800px) {
  .left, .main, .right {
    width: 100%; /* The width is 100%, when the viewport is 800px or smaller */
  }
}
</style>

Responsive Web Page - Full Example

A responsive web page should look good on large desktop screens and on small mobile phones.

Responsive Web Design - Frameworks

All popular CSS Frameworks offer responsive design.

They are free, and easy to use.

W3.CSS

W3.CSS is a modern CSS framework with support for desktop, tablet, and mobile design by default.

W3.CSS is smaller and faster than similar CSS frameworks.

W3.CSS is designed to be independent of jQuery or any other JavaScript library.

<!DOCTYPE html>
<html>
<head>
<title>W3.CSS</title>
<meta name="viewport" content="width=device-width, initial-scale=1">
<link rel="stylesheet" href="https://www.jassifteam.com/w3css/4/w3.css">
</head>
<body>

<div class="w3-container w3-green">
  <h1>Jassif Team Demo</h1>
  <p>Resize this responsive page!</p>
</div>

<div class="w3-row-padding">
  <div class="w3-third">
    <h2>London</h2>
    <p>London is the capital city of England.</p>
    <p>It is the most populous city in the United Kingdom,
    with a metropolitan area of over 13 million inhabitants.</p>
  </div>

  <div class="w3-third">
    <h2>Paris</h2>
    <p>Paris is the capital of France.</p>
    <p>The Paris area is one of the largest population centers in Europe,
    with more than 12 million inhabitants.</p>
  </div>

  <div class="w3-third">
    <h2>Tokyo</h2>
    <p>Tokyo is the capital of Japan.</p>
    <p>It is the center of the Greater Tokyo Area,
    and the most populous metropolitan area in the world.</p>
  </div>
</div>

</body>
</html>

To learn more about W3.CSS, read our W3.CSS Tutorial.

Bootstrap

Another popular CSS framework is Bootstrap:

<!DOCTYPE html>
<html lang="en">
<head>
<title>Bootstrap 5 Example</title>
<meta charset="utf-8">
<meta name="viewport" content="width=device-width, initial-scale=1">
<link href="https://cdn.jsdelivr.net/npm/bootstrap@5.2.3/dist/css/bootstrap.min.css" rel="stylesheet">
<script src="https://cdn.jsdelivr.net/npm/bootstrap@5.2.3/dist/js/bootstrap.bundle.min.js"></script>
</head>
<body>

<div class="container-fluid p-5 bg-primary text-white text-center">
  <h1>My First Bootstrap Page</h1>
  <p>Resize this responsive page to see the effect!</p>
</div>

<div class="container mt-5">
  <div class="row">
    <div class="col-sm-4">
      <h3>Column 1</h3>
      <p>Lorem ipsum...</p>
    </div>
    <div class="col-sm-4">
      <h3>Column 2</h3>
      <p>Lorem ipsum...</p>
    </div>
    <div class="col-sm-4">
      <h3>Column 3</h3>
      <p>Lorem ipsum...</p>
    </div>
  </div>
</div>

To learn more about Bootstrap, go to our Bootstrap Tutorial.

Exercise
